Three Key Reasons Why Our Wireless Nurse Call System is the Best:


Number One Reason to Choose a 900MHz Wireless Nurse Call System

Visionlink wireless goes farther. Our Wireless Nurse Call products provide range far superior to product operating at 300MHz! Why? The 900MHz wavelength is 70% shorter than 300MHz products, allowing the signal to "squeeze" through narrow opening in both commercial and residential environments. The FCC allows higher transmit powers for 900MHz spread spectrum systems. Greater transmit power result in significantly greater range. Systems Technologies Wireless offers up to 10 times the open field range of some narrow-band wireless products.


Number Two Reason to Choose a 900MHz Wireless Nurse Call

System Automatic "self-testing" Our Wireless Nurse Call products are "fully supervised" with the most frequent transmitter "check-ins" available today. Full supervision means that the transmitters automatically transmit ("check-in") to the receiver on a regular basis to test the system for low battery, tamper, and inactive status. With Visionlink 900MHz Wireless Nursecall products, the transmitters can check-in up to once a minute - far more than any other! 300MHz systems send information on one narrow band channel. Any "in-band" interference can result in missed signals. 900MHz utilizes two broadband channels: Wireless 900MHz"C" series radio was the first wireless security system to send redundant information on more than one frequency. These 900MHz spread spectrum wireless sends redundant information on a multitude of different channels across a 10MHz band to maximize range and reliability.


Number Three Reason to Choose a 900MHz Wireless Nurse Call

No false alarms from interference. Our Wireless Nurse Call Systems sophisticated 56 bit protocol eliminates false alarms due to radio interference. With over 1.3 million transmitters installed worldwide, not a single false alarm due to RF interference has ever been reported.




         Wireless Nurse Call Systems - Server PC


Wireless Nurse Call Systems | Pendant Emergency Call Systems

We are offering A variety of "Superior Wireless Nurse Call Systems" that happened to be among the most versatile in the industry.

Our Wireless Call Solutions provide senior living communities the ability to efficiently respond to residents in need of assistance, increasing resident safety and peace of mind. These truly affordable wireless nurse call system is designed after years of working face-to-face with administrators, care givers and residents, so the experience of using our Wireless Nurse Call solutions is everything you want it to be and nothing you don't..

Reliable- Our Wireless Nurse Call Systems use proven and tested 900MHz Spread Spectrum technology. Options available for Battery back-up ensures that your system keeps working even in an emergency. Dependable 24/7 monitoring will let you know right away if your system needs attention.

visionlink Wireless Nurse Call


Expandable - Do you want to start small with your Wireless Nurse Call System and expand in the future? No problem. Our solutions, which can be used as a wireless nurse call or emergency call system, are available in THREE OPTIONS so communities can enter at different price points with the ability to share most of our wireless devices between all three options. You can start small and expand in the future without having to replace all of your transmitters and repeaters. New devices are easily installed and work from the moment they are learned into the system. Care givers can now closely monitor individual residents that require special attention, while allowing other residents the independence they desire.

Escalation - Every senior living community runs differently. At BEC, we don't tell you how to use our system. You tell us how you want to use our system. You can customize and Pre-Program your system in which care givers are notified of alerts, set up separate notifications for different wings or buildings, and even receive notifications by email or text message if care givers haven't responded.

Each system is scalable, code-compliant and independently functional:



Wireless Nurse Call System UL1069 Listed (Version 7) Option Available

Visionlink Wireless Nurse Call System / Emergency Call System's main advantages are:

  • Wireless Nurse Call System's / Emergency Call System's Paging solution
  • Option for a UL 1069 Edition 7 certification for hospital signaling and nurse call equipment
  • Operates at 900MHz Spread Spectrum
  • Includes resident location down to the room-level
  • Integrate nurse call and wireless fall management with optional silent, local alarm
  • Wireless Emergency two-way intercom communication
  • Instant alerts to nurse pagers & LED displays
  • Easy system installation and expansion
  • Wireless voice messaging throughout the facility
  • Improved productivity and reduced maintenance costs

VisionLink Premier Nurse Call System offers the unique ability to meld many patient technology systems into one centralized system to provide patient focused care with superior facility management. It easily installs into any size facility, whether it be a single building or a 100 acre campus and come PRE-PROGRAMMED.  It integrates with smoke and motion detectors, wandering patient door equipment, pocket pagers, wireless phones, two way radios, IPAD’s, cell phones, central station monitoring and other software and hardware options.  Its flexibility allows us to customize a system that will meet the needs of your facility now and grow with you as your requirements expand.  With VisionLink you can provide improved safety for patients and staff plus managed freedom for your residents in a system that will never be outdated.

Start small, think big!  The Vision Link Wireless Nurse Call System is engineered with the quality required for skilled and acute care combined with the ease of use needed by caregivers worldwide. It uses the Windows 7® operating system, 900 MHz spread spectrum wireless technology and multiple wireless platforms to link your residents with your staff. Go wireless when adding a new wing or building and save on conduit and wiring costs. For dome lights just add a single two wire loop through the corridors. For a multi-building campus, add wireless repeaters to send assistance calls to the nearest console by day and a centralized console at night.  Or choose our server option that allows you to manage all of your computer consoles from a central server whether you are on or off site.

Wireless Staff Mobility - Staff members can use IPADS, Pocket Pagers, Two Way Radios, wireless phones, or cell phones to receive alarm calls and even talk to the resident in the room handsfree via our unique VoiceLink feature.  The VisionLink system also provides text messaging.  Not just patient alarms, but any message typed on a keyboard can be sent to any pocket pager, cell phone or group eliminating institutional overhead paging.  Staff can be sent a text when calls are holding or any other information including mass notification for emergencies.  VisionLink can additionally connect to any equipment that gives a contact closure on alarm.  This provides notification from wandering patient systems, exit doors, smoke detectors, motion detectors, bed exit pads, incontinence pads, equipment status, or anything else your facility requires.

Unique personal wireless transmitters - VisionLink Premier offers pendant transmitters unique in the industry for their ability to combine resident emergency signaling with automatic fall alarm and wandering patient notification that includes the patient’s name and location.   The built-in scheduler reminds caregivers to give medications, lock doors or perform other tasks. Best of all, no expensive licenses or upgrades are required to add more stations, staff notification devices or personal pendant transmitters at any time and no service contracts are required to support your system once installed. We feel a quality system should have free technical support on a toll-free number and that is exactly what we provide.

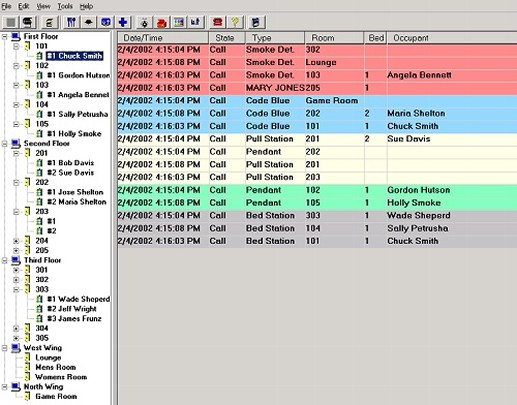

Flexible Software & Reports - Patient information is a standard feature as well as Call Analysis Reports that provide the tools to organize and analyze the patient call data including staff response times.  Your choice of active or passive check-in can notify staff of any resident who is not up and around by your selected time each day.  A scheduler reminds staff to give medications, lock doors or perform other tasks.  Bed turn software notifies CNA's to turn their patients according to schedule.



wireless nursecall management reports


 Visionlink Wireless Nurse Call System / Emergency Call System's main advantages are:

VisionLink Premier Standard Features

  • Windows 7 Professional® Operating System
  • 900 MHz spread spectrum technology
  • Fully supervised (self-testing)
  • Alarm Calls reset at the source
  • Low battery alert
  • Password protection
  • Visual/audible alarm prioritization
  • User replaceable long-life battery
  • Statistical reports package

VisionLink Premier Standard Components

  • Emergency Pull Station
  • Single Patient Station
  • Dual Patient Station
  • Pendant with “call cancel” button
  • Duty Station
  • Code Blue Station
  • Corridor and Zone Lights
  • Universal Transmitter
  • Motion Detector
  • Smoke Detector
  • Water, Glass Break, Temp & More

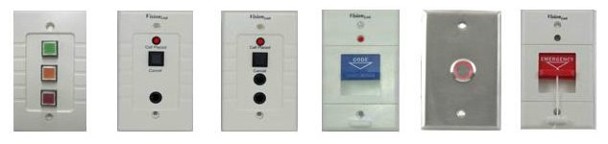

Wireless Nurse Call Stations

Additional Options (as needed)

  • Advanced Statistical Call Analysis Reports
  • Spectralink wireless phone integration
  • Elopement Notification for Residents and Assets
  • Locator Beacons
  • Pocket page and text messaging
  • Central station monitoring
  • Cellular telephone alarm messaging
  • VoiceLink two way voice communication



Wireless Nurse Call pendants


      Equipment Options

  • Location, elopement and fall alarm transmitters
  • Wireless code blue stations
  • Wireless staff and resident emergency stations
  • Corridor and Zone Lamps (white or four color)
  • Custom sconce indicator lamps
  • Alpha-numeric pocket pager & LED readerboards
  • Central station alarm monitoring interface
  • Telephone and cellular phone interface
  • Cisco®, Spectralink®, Ascom & Panasonic interface
  • Two way radio, email and PDA interface
  • Networked consoles can select response areas
  • Remote access for reports and programming
  • Door/Window/Bed exit notification
  • Wandering patient management
  • Smoke/motion/glass breakage detection
  • Active or passive resident check-in status
  • Repeater/Locators for campus coverage
  • Locator and Elopement beacons
  • PC, server and desktop consoles



Even More VisionLink Premier Features

  • Compatible with other call systems
  • Pendant fall alarm & wander notification
  • Internal & external batteries monitored
  • Programmable call escalation
  • Advanced management reports
  • Silent text messaging
  • Quality assurance verification
  • Timed egress alarm notification
  • Text messaging
  • Staff presence indication
  • Bed turn scheduler

VisionLink Premier Standard Components

  • Emergency Pull Station
  • Single Patient Station
  • Dual Patient Station
  • Pendant with “call cancel” button
  • Duty Station
  • Code Blue Station
  • Corridor and Zone Lights
  • Universal Transmitter
  • Motion Detector
  • Smoke Detector
  • Water, Glass Break, Temp & More

Additional Wireless Nurse Call Information



Wireless Pendant

Pendant buttons for all lurked calls are quite visible and these calls can be sent to the PC server as well as any of the pagers set up on the system. There is a small reset button on these pendants so calls can be canceled at the pendant. This button cannot be mistaken for the alert but that the resident would use. Standard coin batteries are used and pendant batteries last from one to two years depending on usage. All pendants offer low battery notifications. These low battery notifications begin 3 to 4 weeks before the battery is completely drained. This should give plenty of time to change out the batteries.

Wireless Pull Cords

Pull cord stations mount to standard single gang boxes and can be flush or surface mounted. These pull cord stations are powered with standard batteries which last anywhere from 3 to 5 years and we typically recommend setting up a schedule to replace all batteries at one time to minimize the maintenance upkeep. Low battery alerts are sent out 3 to 4 weeks before the batteries are completely drained. Calls can be placed on these pull cord stations by pulling the cord or pushing down on the switch of the pullcord itself. Calls from the stations must be canceled at the pull cord.

Wireless Call Alerting

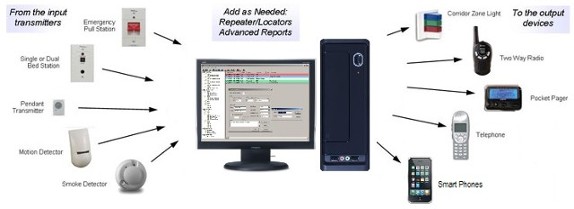

All calls placed on this system can be set up to notify desk mounted consoles, PC server, pocket pagers, two way radios, and other third-party systems. We can even accept calls from other systems such as resident wandering systems. This system can be programmed so that resident names and room numbers are displayed on the console or PC. All fixed devices such as pull cords and patient stations will indicate the location as to where the call was initiated. With the PC-based server we do not have a limitation as to the number of characters used to describe a call. This system has four levels of call escalation and the programmed time between escalation levels can be set to any time. Calls that are ringing through to pocket pagers including calls that have moved to the next escalation level will continue to beep on the pocket pager once every minute or until the call is answered.

Additional System Operation Information

This system has the ability to monitor pendants and all other types of transmitter stations such as pull cords, patient stations, door contacts, emergency push buttons and other stations.  Fixed stations such as pull cords, patient stations, and other wall mounted devices check in on an hourly basis for faults or off-line issues. If going with our UL1069 wireless nurse call system, fixed wall mounted devices are poled every 40 seconds. Pendants will go into default mode when they are out of range. However, these pendants do not report in real-time. The system is typically notified of pendants out of range issues at check-in time based on the system set up. When devices are down, or off-line the alerts will tone at the call consoles and PC so you will have a visual and audible notification. These types of alerts are not sent to the pagers.

Management Reporting

We offer many options and types of reports with our wireless nurse calls systems. Basic reports will indicate call logs, the number of calls placed on the system for a selected period of time whether that be day, week, month, year. You will also be able to see the like of time it took for a call to be responded to.

Optional Features

There are many additional features offered with this system so expanding on this system will not be a problem. You can integrate two way radios, smoke detectors, carbon monoxide detectors, wireless door contacts for door monitoring, patient wandering systems, automatic fall detection pendants, the ability to view calls on other PCs, and much more.
